Mechanical Bar Screen
The smooth running, endless track system employs a gear-driven cleaning rake to carry screenings from the submerged bar rack to a discharge chute for removal – without the use of chains, sprockets, cables or any underwater moving parts.
Description

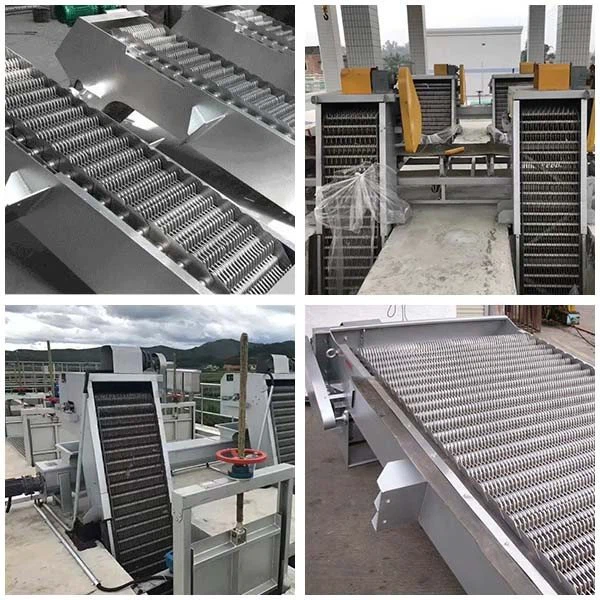

LK-GS Mechanical Bar Screen
Overview
| LK-GS Mechanical Bar Screen is a automatic equipment that is are installed directly in the channels of wastewater treatment plants, during continuous operation phase what does not pass through the spacing of the grid is collected and discharged from the discharge spout located at the top of machine. |  |
How it works?
The smooth running, endless track system employs a gear-driven cleaning rake to carry screenings from the submerged bar rack to a discharge chute for removal – without the use of chains, sprockets, cables or any underwater moving parts.
Parameters
|
Frame Width |
500~3000mm(customized by tank width) |
|
Available clearance |
2,3,5,8,10,20mm(optional) |
|
Reducer |
CYCLO |
|

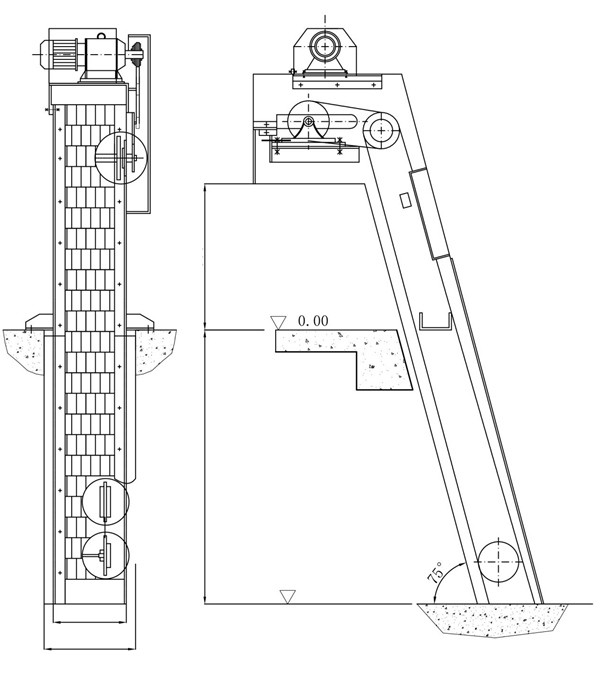

Mounting Angle |
75° |
|
Slagging Height |
800mm from floor level |
|
Material |
|
|
Rack |
SUS304, thickness≥6mm |
|
Cleaning Bar |
SUS304 |
|
Chain wheel and guide wheel |
ASTM SUS 304 |
|
Bar Shaft |
SUS 304, diameter≥18mm |
|
Driving chain |
SUS 304 |
|
Cover |
SUS 304 |
|
Fastener |
SUS 304 |
