Polymer Dosing System
LK-JYJ Polymer dosing system is a complete set of equipment for administering medicine, stirring, coveying liquid and automatic control.
Description

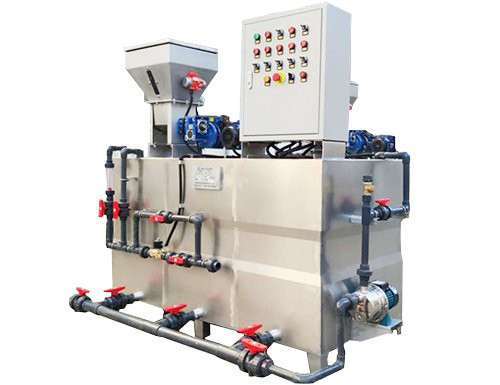

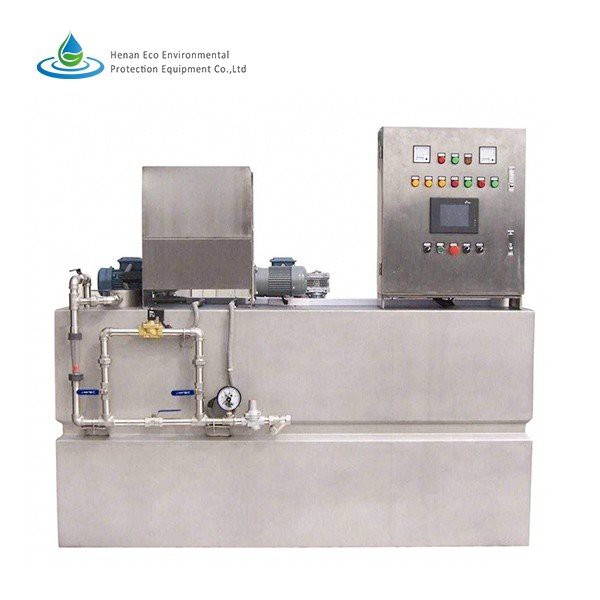

LK-JYJ Polymer Dosing System Chemicals Dosing Plant
Overview
|
LK-JYJ Polymer dosing system is a complete set of equipment for administering medicine, stirring, coveying liquid and automatic control. Polymer dosing system is suitable for the preparation and dosing of polymer organic flocculant.This dosing plant realize the process of automatic feeding, dissolving, maturation, storage, meter dosing etc.by full auto. The plant uses a three-slot structure for mixing, maturation and storage. The corollary equipment is mainly composed of dry powder feeder, dosing screw, mixer, vibrator, stirrer, liquid controller, water supply system, screw dosing pump and control system. |
 |
Features
|
●Polymer dosing system is widely apply in treatment of raw water, boiler feed water , oil gathering, sludge dewatering treatment for all kinds of chemical dosing and wastewater treatment; |
|
●Automatic control of chemical mixing, accurate dosing of coagulate, phosphate removing agent, ammonia, whitewash, corrosion inhibitor antisludging agent, etc. |
|
●Full SUS304 material, more durable use and longer service life; |
|
●Can be equip with PLC control ,more intelligent |
|
|
Parameters
|
Model |
Ability to bubble medicine(L/h) |
Physical dimension | Power(KW) | Weight(kg) | |||
|
L |
W |
H |
no load |
run |
|||
|
LKJYJ-500 |
500 |
1750 |
850 |
1600 |
1.3 |
200 |
700 |
|
LKJYJ-1000 |
1000 |
2300 |
1450 |
1700 |
1.9 |
430 |
1430 |
|
LKJYJ-1500 |
1500 |
2500 |
1510 |
1870 |
1.9 |
490 |
1990 |
|
LKJYJ-2000 |
2000 |
2810 |
1600 |
1970 |
1.9 |
550 |
2550 |
|
LKJYJ-3000 |
3000 |
2810 |
1800 |
2020 |
3.6 |
680 |
3680 |
|
LKJYJ-4000 |
4000 |
3100 |
1800 |
2020 |
3.6 |
800 |
4800 |
Video
Onsite working reference
