Solid-liquid Separator

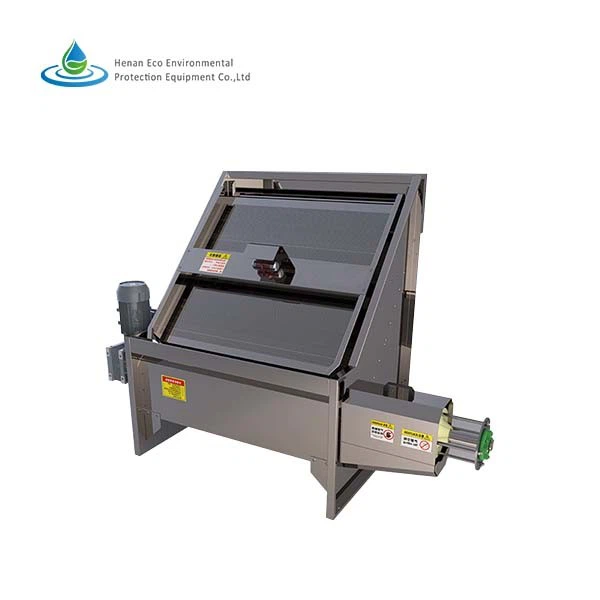

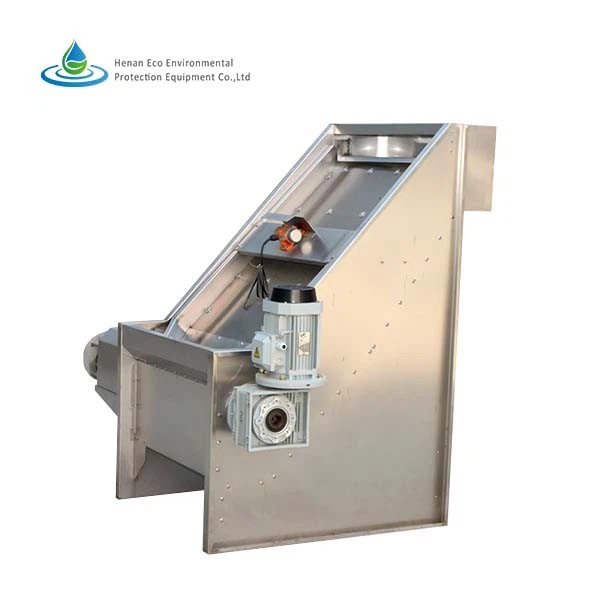

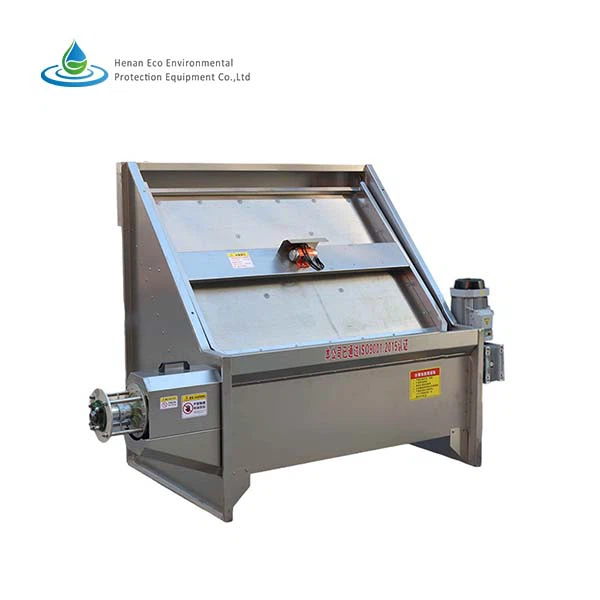

LK-SY solid-liquid separator is an advanced equipment for solid-liquid separation of manure, water and biogas liquid produced in aquaculture plants.
Description
LK-SY Solid-liquid Separator Machine
Overview
|

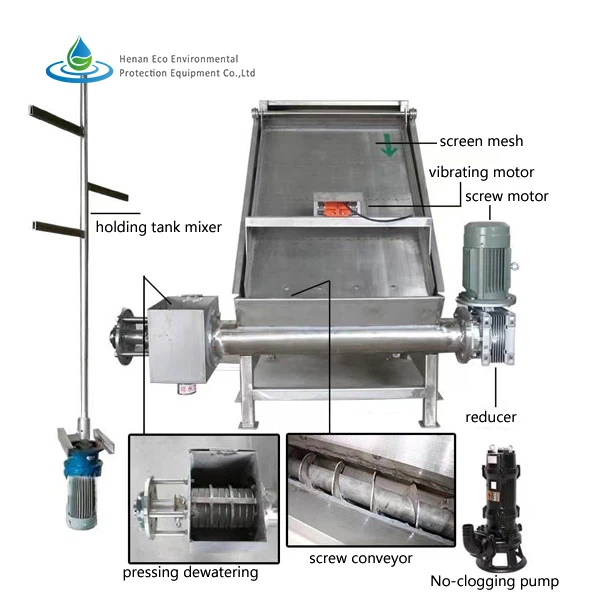

LK-SY solid-liquid separator is an advanced equipment for solid-liquid separation of manure, water and biogas liquid produced in aquaculture plants. With triple functions of watercutting, high frequency vibration and spiral extrusion. it is applied to separating mixtures of various concentrations,and with features of automatic control and high processing efficiency. |
 |
Video demonstration
Features
|
●Full 304 stainless steel material, longer service life. ; |
|
●Wedge-shaped filter mesh, anti-clogging; |
|
●High processing efficiency, feeding 20-50 cubic meters per hour; |
|
●Filtration + dehydration, high frequency vibration reduces more water. |
Parameter
|
Model |
LK-SY800 |
LK-SY1200 |
LK-SY1500 |
|
Dimensions(mm) |
1700*1250*1600 |
2100*1250*1600 |
2280*1220*1580 |
|
Weight(kg) |
380 |
480 |
580 |
|
Voltage |
An Be Customized |
||
|
Pressing motor(kw) |
3.0 |
3.0 |
4.0 |
|
Feeding pump(kw) |
1.5 |
2.2 |
3.0 |
|
Capacity(m³/h) |
15-20 |
20-25 |
25-35 |
|
Vibrator |
0.03kw |
||
|
Screw |
SUS304, 4mm thick |
||
|
Material |
Full SUS304 |
||
Application
|
●Raw waste in water separation for hoggery,and Cattle Ranch |
|
●Soiled-liquid separation for biogas digester . |
|
●Pre-filter treatment of wastewater treatment plant |
|
●Soiled-liquid separation of some other applications |
Onsite working reference
