LK-GS Mechanical Bar Screen For Wastewater
LK-GS Mechanical bar screen widely used in wastewater treatment plants. Used to remove coarse debris floating in wastewater. The gap can be customized according to the size of debris in the wastewater.
Description
Overview

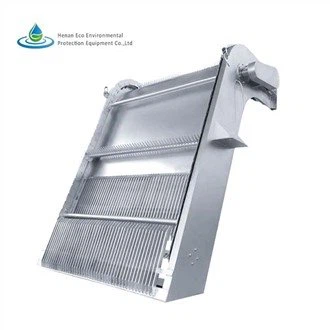

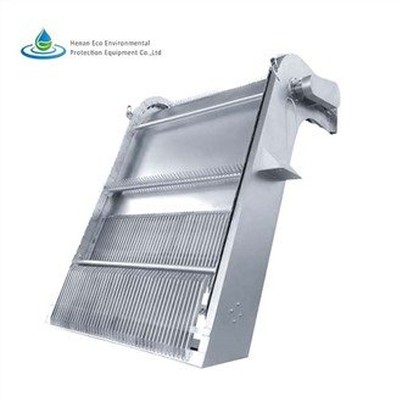

LK-GS Mechanical bar screen is a special equipment for water treatment that removes impurities of various shapes in the fluid.
It is widely used in sewage treatment plants, all kinds of rainwater, water supply lifting pump stations, and sewage pump stations to intercept floating objects.
It is an ideal solid-liquid separation equipment for the water treatment industry.
Features
1. High degree of automation： Mechanical bar screen ensures continuous and stable operation in unattended conditions. Equipped with an overload protection device, it will automatically shut down in case of failure to avoid overloading the equipment.
2. High separation efficiency： The sieve plate is driven by the transmission chains on both sides to extract the dirt in the entire channel from bottom to top. When it reaches the upper part, it will automatically complete the decontamination work through the rotation of the sprocket and the function of the rotating brush.
3. Space saving: vertical installation effectively saves space
4. Excellent material quality： The traction chain is generally made of stainless steel to ensure that it will not rust during underwater operations, which greatly improves the service life. The anti-corrosion solution is sand blasting, rust removal, and epoxy zinc-rich primer
5. Reliable cleaning effect： One rake every 2m, the linear speed of the rake is 6m/min, and the cleaning efficiency is high.
How It works？
1. Mechanical bar screen price adopts the rotary type and rotates in the countercurrent direction. Driven by the motor reducer, it continuously removes small floating objects in the sewage.
2.The material moves downward. When the dirty net runs to the discharge port of the equipment, most of the solid matter falls down by gravity, and the remaining part is cleaned by the cleaning rotating brush, which will ensure that the dirt will not enter the net.
Technical Drawing Reference
