Ultraviolet Generator
The total coliform group value in the source water is less than 1000/L, and the total number of bacteria is less than 2000/ML
Description

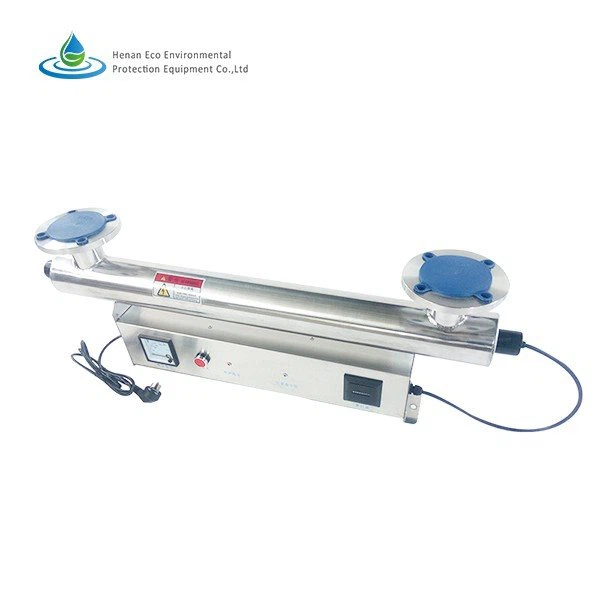

LK-UV Ultraviolet Generator in Wastewater treatment
Overview
|
LK-UV Ultraviolet Generator requirements for source water quality: ● Bacterial index: The total coliform group value in the source water is less than 1000/L, and the total number of bacteria is less than 2000/ML: ●The chromaticity is less than 15 degrees; ●The total iron content is less than 0.3mg/L; The turbidity is less than 5 degrees; ●The manganese content value is less than 0.05ppm (0.05 mg/L); ●The hardness is less than 7gpg (120 mg/L), if the total hardness is greater than 7gpg, the water source needs to be softened; ●UV penetration rate is greater than 75%. |
 |
Features
|
●Widely applied to: Hotel water supply, hospital water, villa drinking water, school drinking water, secondary water supply projects in residential areas, office building water supply, water in large public places, swimming pool water, landscape water and other water treatment terminals; |
|
●High sterilization rate, short time and no secondary pollution; |
|
●Easy installation, safe and reliable operation, and low cost. |
Parameters
|
Model |
Specification(mm) |
Flange |
Flange distance(mm) |
Power(kW) |
|
LKUV-75-1 |
89x900 |
DN50 |
675 |
75 |
|
LKUV-75-2 |
108x900 |
DN50 |
675 |
150 |
|
LKUV-75-3 |
133x900 |
DN100 |
620 |
225 |
|
LKUV-75-5 |
159x900 |
DN100 |
620 |
375 |
|
LKUV-120-6 |
219x1200 |
DN150 |
855 |
720 |
|
LKUV-120-8 |
219x1200 |
DN150 |
855 |
960 |
|
LKUV-120-10 |
273x1200 |
DN200 |
800 |
1200 |
|
LKUV-120-14 |
273x120 |
DN200 |
800 |
1680 |
|
LKUV-150-14 |
273x1600 |
DN200 |
1200 |
2100 |
|
LKUV-150-20 |
377x1600 |
DN300 |
1075 |
3000 |
|
LKUV-320-18 |
377x1600 |
DN300 |
1075 |
5760 |
Onsite working reference
video
