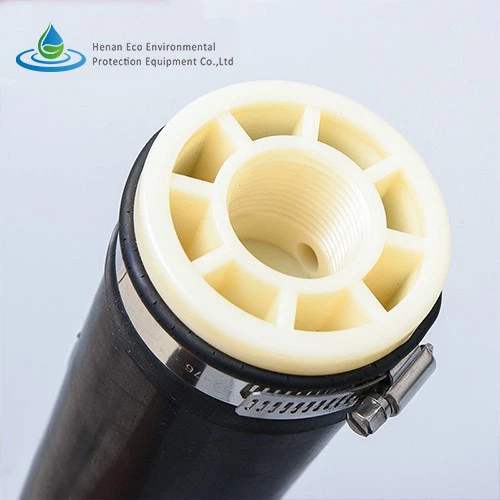

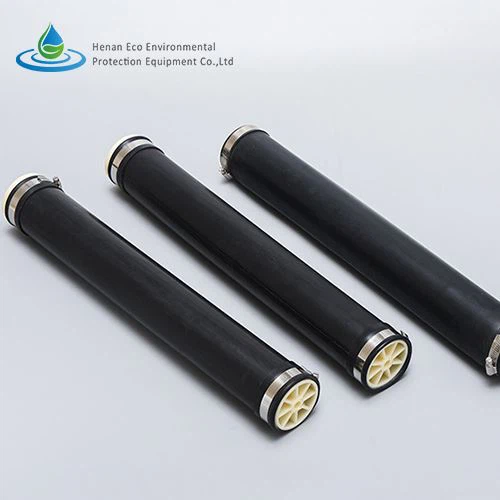

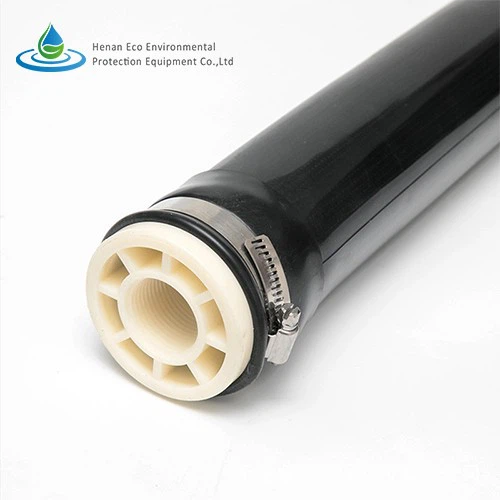

Tube Diffuser By ABS + EPDM
LK-BG Tube Diffuser by ABS + EPDM is an easy-to-install fine bubble tube diffuser for water treatment. Using EPDM material, which increases the overall strength and has a longer service life. This material solves the problem of diaphragm tearing and shedding, increasing the stability and reliability of the system.
Description
Overview
LK-BG Tube Diffuser by ABS + EPDM is a tubular membrane diffuser mainly used in the continuous aeration process. The energy-saving design has the characteristics of high oxygen transfer efficiency, high resistance to clogging, high corrosion resistance, and wide air volume range when used. Compared with traditional materials, this ABS + EPDM material increases the overall structural strength. At the same time, Tube Diffuser has been upgraded and improved to make it more stable and reliable.
Features
| √ High oxygenation efficiency and remarkable energy-saving effect |
| √ Unique air distribution structure, uniform air distribution, and tight air bubbles |
| √ High-quality materials are specially processed for excellent performance. The service life can reach more than 8 years |
| √ With high power efficiency and low energy consumption, it can save about 30% of operating costs compared with ordinary aerators |
| √ Anti-skid design and cost saving |
| √ No need for aeration branch pipes, saving investment costs |
Application
Applicable to various water body oxygenation processes, such as
| √ Municipal sewage |
| √ Municipal/industrial Mixed Wastewater |
| √ Industrial wastewater |
| √ River lake |
| √ Oily sewage |
| √ Fish farm |
Parameter
Dimensions (mm) | 63*500 | 63*750 | 63*1000 | |
Oxygen transfer efficiency | 5.0m water depth | 23--32% | 23--32% | 23--32% |
6.0m water depth | 34-39.5% | 34-39.5% | 34-39.5% | |
7.0m water depth | 31-45% | 31-45% | 31-45% | |
Ventilation (m3/h) | 1.7-6.8 | 3.4-13.6 | 3.4-17.0 | |
Service area | 0.82-1.26 | 0.98-2.11 | 0.98--2.35 | |
Number of openings | 8080 | 10300 | 13880 | |
Bubble diameter(mm) | 0.8-2.0 | 0.8-2.0 | 0.8-2.0 | |
Pressure loss(cm) | 25-42 | 25-41.5 | 25-40 | |
Oxygenation capacity | Micropore: 7.5kgO2/kW h (under 5m water depth); micropore: 3.5-4.8KgO2/kW h (under 5m water depth) | |||
Extendability | >600% | |||
Tensile strength | >13.8*10³kPa | |||
