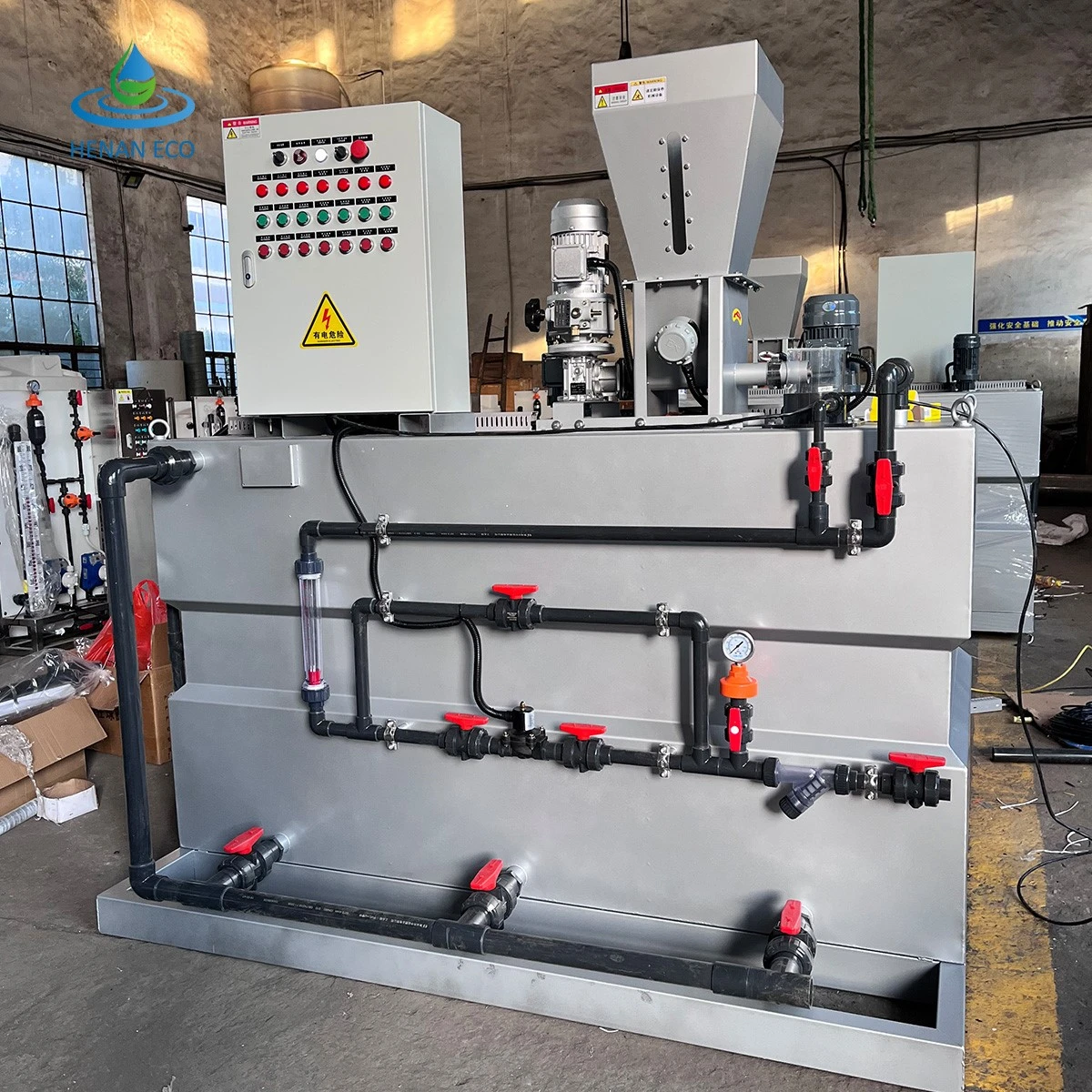

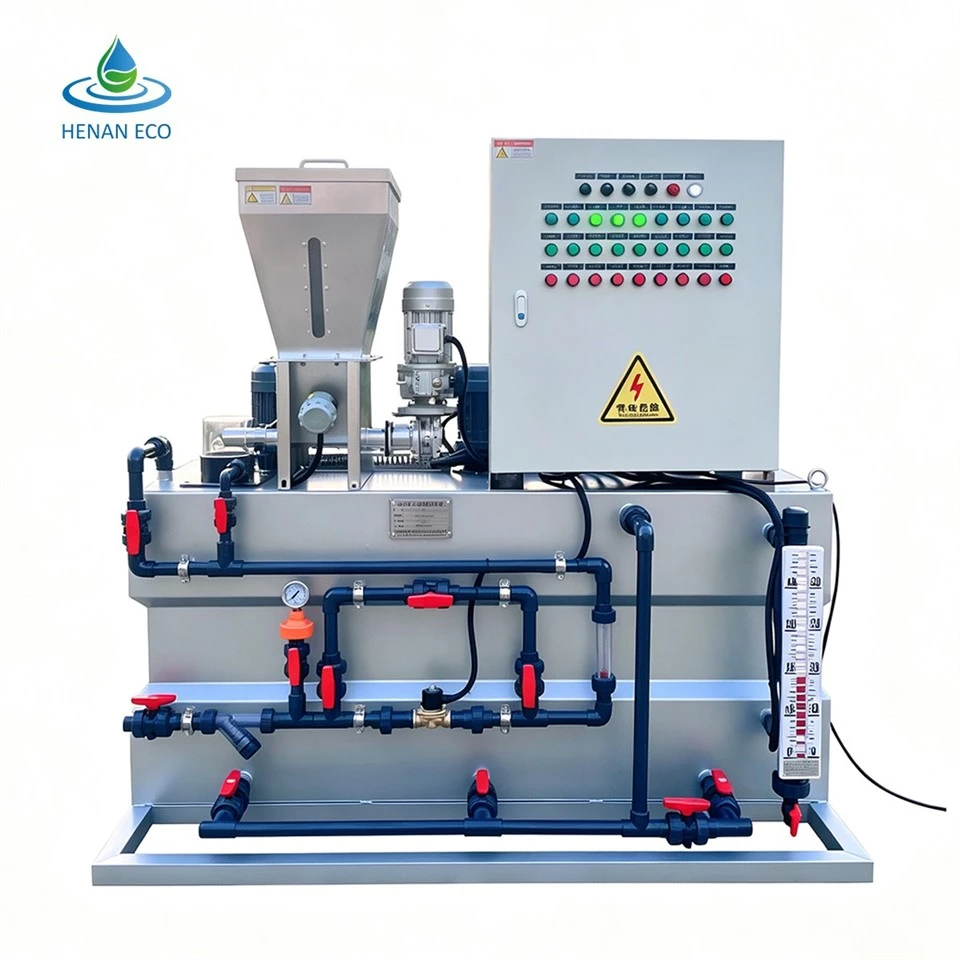

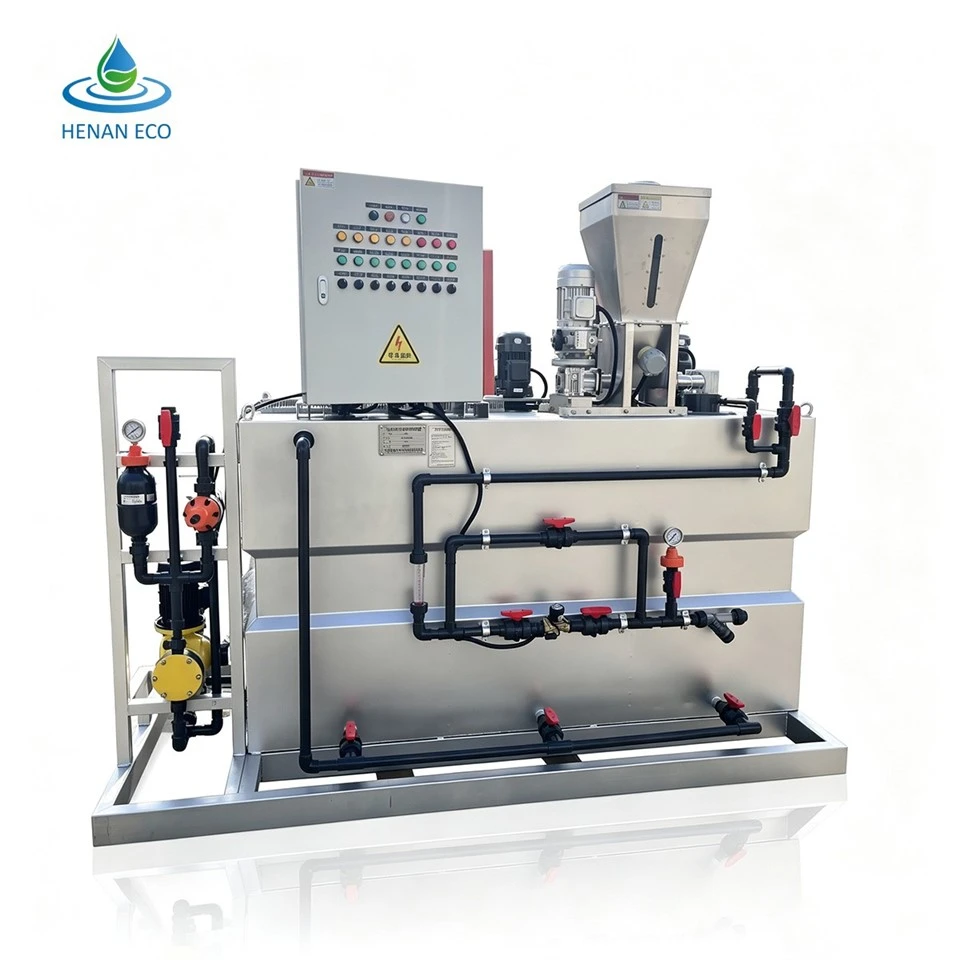

Automatic Chemical Dosing System







This chemical metering system supports the dosing of most common water treatment chemical solutions with stable concentration and accurate proportioning, covering mainstream agents in the industry:



Coagulants & Flocculants: PAC, PAM, ferric sulfate, aluminum sulfate for suspended solids and sediment removal

pH Regulators: Sodium hydroxide, sulfuric acid, hydrochloric acid to adjust water pH value

Disinfectants: Sodium hypochlorite, chlorine dioxide, hydrogen peroxide for sterilization and algae removal

Water Quality Stabilizers: Scale inhibitors, corrosion inhibitors, biocides for circulating water and boiler water anti-scaling and anti-corrosion

Special Agents: Phosphorus removers, nitrogen removal agents, decolorizing agents for advanced wastewater treatment



The system can adapt to 0.1%–10% concentration liquid chemical dosing, meeting diverse process dosing requirements of different industries.





A complete chemical injection system consists of standardized modular components, ensuring integrated operation and convenient maintenance:

Chemical Storage Tank: High-corrosion-resistance tank body for long-term storage of liquid chemicals, equipped with anti-overflow and ventilation devices

Automatic Agitator: Prevents chemical precipitation and stratification to ensure uniform solution concentration

Metering Dosing Pump: Core component for precise quantitative chemical delivery

Liquid Level Monitoring Device: Real-time monitoring of tank liquid level, with automatic alarm for low liquid level

Pipeline & Valve Assembly: Anti-corrosion pipelines, check valves, relief valves and filters to ensure smooth and safe medium transmission

Electric Control Cabinet: Supports automatic start-stop, proportional dosing, linkage operation and fault self-detection

Safety Protection Accessories: Pressure relief device, leakage prevention device to avoid pipeline pressure overload and chemical leakage



We provide multiple pump configurations for different flow rates, pressures and chemical media, matching customized chemical feed system solutions:



Screw Pump: Suitable for medium and large flow dosing (1000L/h–3000L/h), stable operation, low noise, suitable for viscous and impurity-containing chemical solutions, widely used in wastewater treatment projects

Diaphragm Metering Pump: High precision (accuracy ±2%), adjustable flow rate, suitable for low-flow and high-precision dosing scenarios

Operating & Standby Configuration: Support customized schemes such as 3 operating + 1 standby, 1 operating + 1 standby. The standby pump automatically starts when the working pump fails to ensure uninterrupted system operation

All pumps support continuous 24-hour operation, adapting to industrial continuous production and water treatment processes.







Material selection is strictly based on chemical corrosion resistance to extend equipment service life and avoid medium contamination:



Tank Body: HDPE / PP / SS316L, anti-aging and strong anti-corrosion, suitable for most acidic, alkaline and neutral chemical solutions

Pump Head & Wetted Parts: PVC / CPVC / PVDF / PTFE / SS316L, optional high-grade Hastelloy for special corrosive media

Pipeline & Valves: Anti-corrosion PVC, CPVC and stainless steel materials, resistant to chemical erosion and high pressure

Agitator Shaft & Blade: SS304 / SS316L stainless steel, polished and anti-rust treated





The automatic chemical dosing unit is widely used in various scenarios requiring precise chemical dosing:



Municipal & Industrial Wastewater Treatment: Dosing coagulants, disinfectants and phosphorus removal agents to meet discharge standards

Industrial Circulating Water & Boiler System: Dosing scale inhibitors and corrosion inhibitors to protect pipelines and boiler equipment

Drinking Water Treatment: Sterilization, disinfection and pH adjustment to ensure safe drinking water

Food & Beverage Industry: Purified water treatment and production water conditioning

Textile, Papermaking & Chemical Industry: Process water dosing and wastewater advanced treatment

Swimming Pool & Landscape Water: Regular disinfection and algae removal dosing





Dosing Accuracy: ±2% steady-state precision

Flow Rate Range: Customizable 1000L/h, 2000L/h, 3000L/h and other specifications

Applicable Solution Concentration: 0.1%–10% chemical solution

Working Temperature: 0℃–80℃ (adjustable according to materials)

Working Mode: Automatic continuous dosing / proportional dosing / manual auxiliary adjustment

Operation Mode: 24-hour continuous operation, support fault alarm and liquid level automatic protection

Power Configuration: Customized 220V/380V according to project requirements



Model	Ability to brew medicine (L/H)	Physical dimension(mm)‑L	Physical dimension(mm)‑W	Physical dimension(mm)‑H	Total Power(kW)	Weight(kg)‑No load	Weight(kg)‑Run
LK‑JYJ500	500	1000	1030	1600	1.87	400	1500
LK‑JYJ1000	1000	1845	1100	1750	2.62	450	2000
LK‑JYJ1500	1500	2065	1100	1750	2.62	550	2650
LK‑JYJ2000	2000	2340	1300	1800	2.62	750	3200
LK‑JYJ3000	3000	2740	1500	1900	3.67	850	3680
LK‑JYJ4000	4000	3350	1846	1758	3.67	950	4800
LK‑JYJ5000	5000	3350	1846	1950	3.67	1010	5000
LK‑JYJ6000	6000	3350	1846	2100	6.67	1120	6200
