Polymer Dosing System For Wastewater
LK-JYJ Polymer dosing system for wastewater is widely used in wastewater treatment, it can continuously and effectively mix the compounds, so the reactive polymer solution appears
Description
Overview

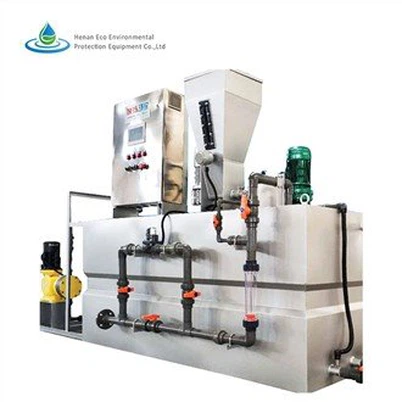

LK-JYJ Polymer dosing system for wastewater is an auxiliary automatic equipment that can be continuously configured and efficiently completes the chemical combination and mixing of polymers to obtain a homogeneous and activated solution. The equipment can be widely used in municipal sewage treatment, sludge dehydration treatment, and other processes. The machine includes different parts: a dry powder hopper, soaking device, water tank, liquid level controller, mixer, water inlet pipe, and electrical cabinet.
Features
| √ The polymer dosing system ensures perfectly even dilution of concentrated polymers |
| √ High-precision dosing and a well-designed heater device can prevent the polymer from agglomerating |
| √ Functionally prevent caking or deterioration |
| √ Reliable automated process |
| √ Unique automatic operation and standby cross-mixing function design, so that the homogeneous solution is always in the best state of uniformity |
Parameters
Model | Ability to bubble medicine（L/h） | Physical dimension | Power(kW) | Weight(kg) | |||
L | W | H | no load | run | |||
LKJYJ-500 | 500 | 1750 | 850 | 1600 | 1.3 | 200 | 700 |
LKJYJ-1000 | 1000 | 2300 | 1450 | 1700 | 1.9 | 430 | 1430 |
LKJYJ-1500 | 1500 | 2500 | 1510 | 1870 | 1.9 | 490 | 1990 |
LKJYJ-2000 | 2000 | 2810 | 1600 | 1970 | 1.9 | 550 | 2550 |
LKJYJ-3000 | 3000 | 2810 | 1800 | 2020 | 3.6 | 680 | 3680 |
LKJYJ-4000 | 4000 | 3100 | 1800 | 2020 | 3.6 | 800 | 4800 |
