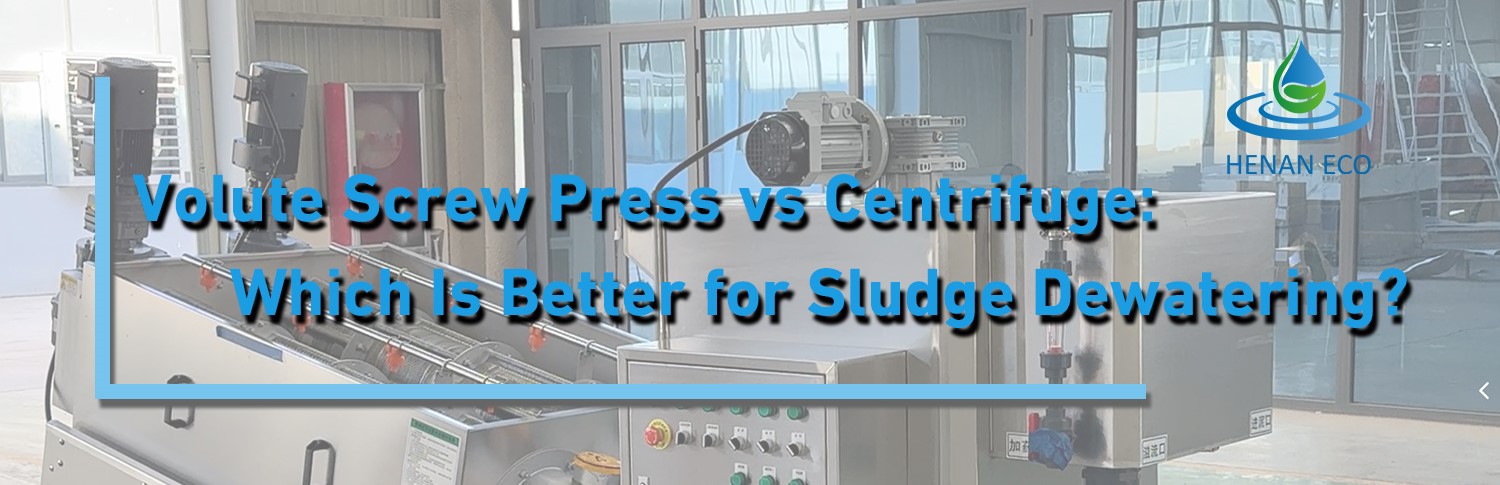

Volute Screw Press vs Centrifuge: Which Is Better for Sludge Dewatering?

Mar 18, 2026

Leave a message





Mike - Wastewater Treatment Expert

Author: Mike

Wastewater Treatment Engineer Water Treatment Expert

Time: January 20, 2026

Introduction: I'm Mike, I've been deeply engaged in the field of wastewater treatment and environmental protection equipment for a long time, with extensive front-line experience. I focus on engineering implementation and operation optimization, sharing practical and applicable industry insights.

 info-1500-485



Choosing the wrong dewatering technology can add $50,000–$200,000/year in avoidable energy and maintenance costs. This guide breaks down the real engineering numbers - energy draw, cake dryness, maintenance burden, and application fit - so you can match the right machine to your sludge.

Both volute screw presses and decanter centrifuges dewater municipal and industrial sludge. The centrifuge dominates large plants and high-solids applications; the screw press wins in energy efficiency, low-maintenance contexts, and thin sludge. Neither is universally superior - the right choice depends on your flow rate, polymer budget, footprint, and target dry solids.





Energy Consumption: The Biggest Cost Driver



Energy is typically the dominant life-cycle cost for dewatering equipment, often exceeding capital cost over a 15–20 year asset life. The gap between these two technologies is significant.



At-a-glance energy figures

VOLUTE SCREW PRESS
0.5–1
kWh/m³ feed sludge
DECANTER CENTRIFUGE
3–8
kWh/m³ feed sludge
ENERGY RATIO
6–16×
centrifuge vs VSP
ANNUAL SAVINGS (100 M³/D)
~$40K
@ $0.12/kWh

A volute screw press runs at low RPM (3–10 rpm) with a small drive motor (0.75–4 kW per unit), whereas a decanter centrifuge spins at 2,000–4,000 rpm, requiring 15–75 kW drives plus a back-drive motor. This mechanical difference is why the VSP's energy footprint is an order of magnitude lower.



At a plant processing 200 m³/day of mixed municipal sludge, switching from centrifuge to VSP can reduce annual electricity consumption by approximately 200,000–400,000 kWh - a material impact on operational carbon footprint as well as cost.





Dewatering Performance: Cake DS, Polymer, and Capture



Dewatered cake dryness directly determines disposal cost: every percentage point of dry solids (DS) reduces cake mass. A jump from 18% DS to 25% DS cuts cake volume by ~28%.

PARAMETER
VOLUTE SCREW PRESS
DECANTER CENTRIFUGE
Typical cake DS - WAS
15–22%
18–25%
Typical cake DS - digested sludge
18–28%
22–32%
Polymer dose (kg/t DS)
4–8 kg/t DS
3–6 kg/t DS
Solids capture rate
93–97%
95–99%
Feed solids range
0.3–3% TS optimal
1–8% TS optimal
Cake DS variability
Low (stable)
Low–medium (speed-tunable)
Filtrate quality
Moderate (milky)
High (clearer centrate)

The centrifuge consistently achieves 2–6 percentage points higher cake DS, especially on digested biosolids. This matters when landfill gate fees charge by wet weight or when downstream drying is involved. However, VSP polymer consumption is slightly higher because thin sludge conditioning at low shear requires more flocculant.

VERDICT - CAKE DRYNESS
Centrifuge wins on maximum dryness for digested or thickened sludge. VSP wins for thin WAS (0.3-1.5% TS) where centrifuges struggle with low feed consistency and high energy draw becomes disproportionate.



Maintenance Cost and Operational Complexity



Capital cost comparison is well documented; maintenance cost is where operators are most often surprised.



FACTOR
VOLUTE SCREW PRESS
DECANTER CENTRIFUGE
Rotating speed
3–10 rpm
2,000–4,000 rpm
Main wear parts
Screw flights, fixed rings
Bowl, scroll, bearings, seals
Bearing life
40,000–60,000 hrs
15,000–25,000 hrs
Vibration sensitivity
Low
High - grit damage risk
Annual maintenance cost (typical)
$3,000–$8,000/unit
$15,000–$40,000/unit
Odor containment
Fully enclosed
Open - requires covers
Noise (dB at 1m)
60–70 dB
75–85 dB
Unattended operation
Yes (24 hr+)
Requires periodic checks
Grit tolerance
Good
Poor - abrasion damage
Footprint
Compact (0.3–2.5 m²)
Large (2–8 m²)

Centrifuge scroll wear from grit and abrasive primary sludge is the leading unplanned maintenance event in wastewater applications. Scroll rebuilds typically cost $8,000–$25,000 and remove the machine for 2–4 weeks. VSP rings and screw flights wear much more slowly and can usually be replaced on-site without specialist tools.



For plants with limited maintenance staff or remote operation requirements, the VSP's lower complexity is a decisive advantage. The centrifuge's higher throughput per unit still makes it necessary at larger scales - but the maintenance overhead must be factored into total cost of ownership.



Application Suitability: Which Equipment Fits Your Process?



No dewatering technology performs uniformly across all sludge types and plant sizes. The following breakdown maps common scenarios to the right equipment choice.

Volute Screw Press - best fit
  • > Thin WAS (0.3-1.5% TS), no pre-thickening
  • > Small-medium WWTPs (5-50 MLD)
  • > Industrial effluent: food, paper, textile
  • > Decentralised/remote sites, unstaffed hours
  • > Facilities with strict noise/odour limits
  • > Low-carbon or energy-reduction mandates
  • > Mixed sludge with grit carry-over
  • > Tight footprint, containerised dewatering
Decanter Centrifuge - best fit
  • > High-solids digested biosolids (>4% TS feed)
  • > Large municipal WWTPs (>100 MLD)
  • > Minimum landfill cake DS required (>25%)
  • > Oil-in-sludge or high-fat industrial streams
  • > Lime-stabilised biosolids for agriculture
  • > High-throughput (>30 m³/hr per unit)
  • > Existing centrifuge infrastructure (capex savings)
  • > Where centrate quality is critical (nutrient recovery)

Capital cost comparison (indicative)



CAPACITY
VOLUTE SCREW PRESS
DECANTER CENTRIFUGE
Small (1–3 m³/hr)
$25,000–$60,000
$80,000–$150,000
Medium (5–15 m³/hr)
$60,000–$130,000
$150,000–$320,000
Large (20–50 m³/hr)
Multi-unit: $200,000+
$300,000–$600,000



FAQ

All FAQsSludge HandlingPolymerThroughputFood SludgePayback
Can a volute screw press handle digested sludge?
Yes. Anaerobically digested sludge at 2–4% TS feeds well to a VSP and typically yields 20–26% cake DS - adequate for most landfill and composting end-uses. If you need >28% DS for thermal drying or premium land-spreading contracts, a centrifuge will likely outperform.
Does a screw press need polymer conditioning?
Yes, in almost all municipal applications. A cationic polyelectrolyte at 4–8 kg/t DS is required to flocculate solids before the gravity drainage section. The VSP's low-shear environment preserves floc integrity well, but polymer is not optional. Some industrial sludges with high cellulose content can run polymer-free.
What throughput can a single volute screw press achieve?
Standard commercial units range from 1 m³/hr (small, 260 mm screw) up to 25–30 m³/hr (500 mm multi-screw configurations). For higher capacity, multiple units are installed in parallel - this also provides built-in redundancy, a key operational advantage over single large centrifuges.
Is a centrifuge better for food-processing sludge?
It depends on fat and oil content. High-FOG streams (slaughterhouse, rendering) benefit from centrifuge's three-phase separation capability. For vegetable-processing or starch-plant sludge, a VSP is usually preferred due to simpler maintenance and lower energy draw at the moderate solids concentrations typically seen in those streams.
How do I calculate payback on switching from centrifuge to VSP?
Use: Annual saving = (kWh_cent − kWh_vsp) × electricity rate + (maintenance_cent − maintenance_vsp). For a 10 m³/hr application, energy savings alone typically generate $30,000–$70,000/year, giving simple payback on capital replacement of 3–6 years. Factor in any increase in cake haulage cost if DS drops 3–4 percentage points.
