Belt Filter Press
The process of dewatering is achieved by passing a pair of filtering cloths and belt through a system of rollers, the system takes sludge or slurry as a feeding, and separates it into a filtrate and a solid cake.
Description

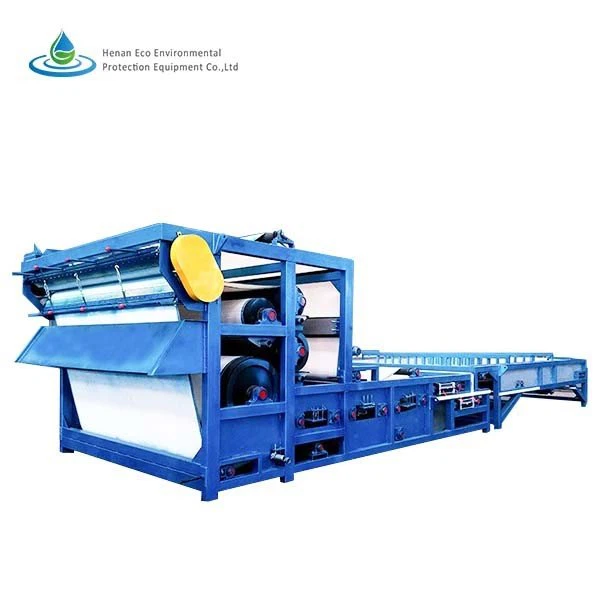

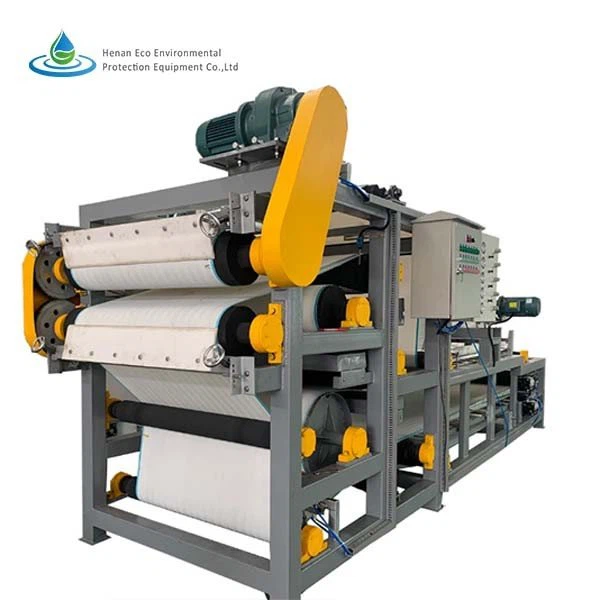

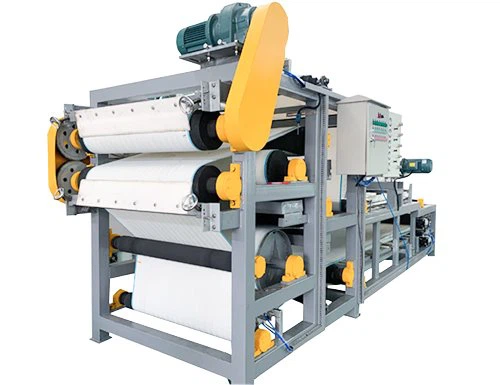

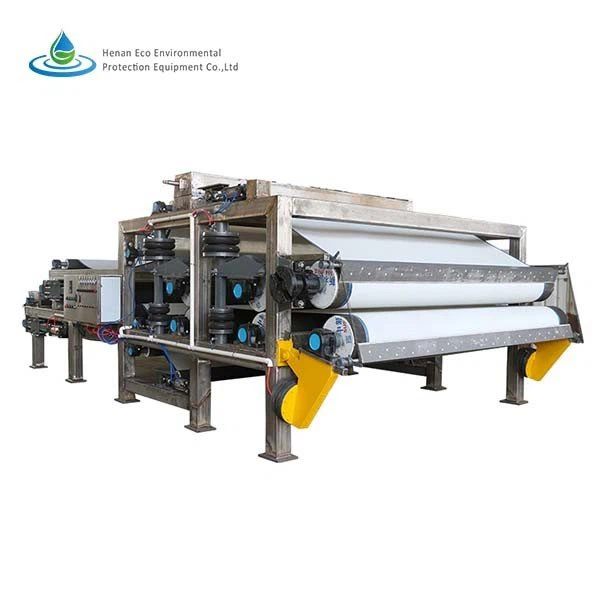

LK-DSY Belt Filter Press sludge dewatering machine
Overview
| LK-DSY Belt filter press is a solid/liquid separation device, applied for the dewatering of sludge in the pulp and paper mill，chemical industry, printing and dyeing mill, mining and sewage treatment. The process of dewatering is achieved by passing a pair of filtering cloths and belt through a system of rollers, the system takes sludge or slurry as a feeding, and separates it into a filtrate and a solid cake. |  |
How it Works?
LK-DSY Belt filter press is a biosolids/sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry, which is sandwiched between two tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls. The machine can actually be divided into three zones: gravity zone, where free draining water is drained by gravity through a porous belt; wedge zone, where the solids are prepared for pressure application; and pressure zone, where medium, then high pressure is applied to the conditioned solids.
Typically, a belt filter press receives a slurry ranging from 1-4% feed solids and produces a final product of 25% cake solids. Performance depends on the nature of the solids being processed.
Features
●Reliable working performance, with good equipment quality; |
●Low initial cost and low energy running cost ,high capacity throughputs; |
●Low staffing, easy maintenance and long life; |
●Open and viewable at flow level for easier adjustment and monitoring; |
●Continuous working, noiseless; |
●Widely used for many fields, like pulp and paper mill，chemical industry, printing and dyeing mill, mining and sewage treatment |
Parameters
Model | LK-DSY0.8 | LK-DSY1.0 | LK-DSY1.5 | LK-DSY2.0 | LK-DSY2.5 |
Capacity(m³/h) | 5-10 | 10-16 | 16-26 | 26-36 | 36-50 |
Thick motor(kW) | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
Press motor(kW) | 1.5 | 1.5 | 2.2 | 3.0 | 4.0 |
Belt width(mm) | 800 | 1000 | 1500 | 2000 | 2500 |
Thick belt speed(m/min) | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 |
Press belt speed(m/min) | 4-14 | 4-14 | 4-14 | 4-14 | 4-14 |
Washing pressure(Mpa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 |
Length (mm) | 5770 | 5770 | 5770 | 7300 | 7300 |
Width(mm) | 1620 | 1820 | 2320 | 3000 | 3500 |
Height(mm) | 2180 | 2180 | 2180 | 2400 | 2400 |
Feed water content | ≥1% | ≥1% | ≥1% | ≥1% | ≥1% |
Discharge water content | 18-22% | 18-22% | 18-22% | 18-22% | 18-22% |

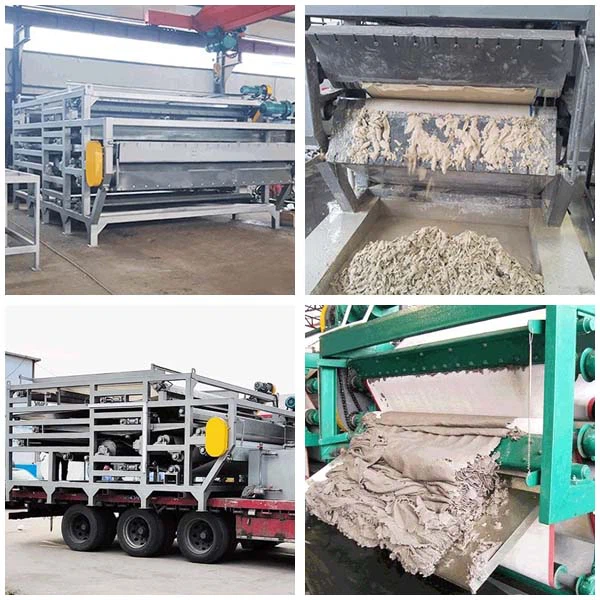

Onsite working reference
